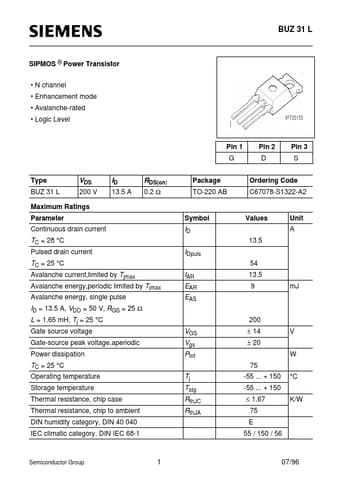

BUZ 31 L
SIPMOS ® Power Transistor • N channel • Enhancement mode • Avalanche-rated • Logic Level
Pin 1 G Type BUZ 31 L
Pin 2 D
Pin 3 S
VDS
200 V
ID
13.5 A
RDS(on)
0.2 Ω
Package TO-220 AB
Ordering Code C67078-S1322-A2
Maximum Ratings Parameter Continuous drain current Symbol Values 13.5 Unit A
ID IDpuls
54
TC = 28 °C
Pulsed drain current
TC = 25 °C
Avalanche current,limited by Tjmax Avalanche energy,periodic limited by Tjmax Avalanche energy, single pulse
IAR EAR EAS
13.5 9 mJ
ID = 13.5 A, VDD = 50 V, RGS = 25 Ω L = 1.
