SiT2019B - One-Output Clock Generator

SiTime

The SiT2019B by SiTime is a One-Output Clock Generator. Below is the official datasheet preview.

📥 Download Datasheet

SiT2019B One-Output Clock Generator by SiTime - Datasheet Preview — Official preview page of the **SiT2019B** One-Output Clock Generator datasheet (SiTime).

Datasheet Details

Part number	SiT2019B
Manufacturer	SiTime
File Size	927.76 KB
Description	One-Output Clock Generator
Datasheet	SiT2019B-SiTime.pdf

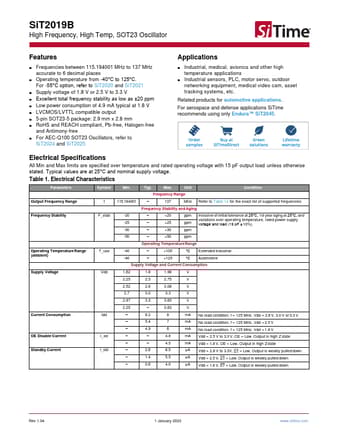

Additional preview pages of the SiT2019B datasheet.

SiT2019B Product details

Description

Pin Symbol Functionality 1 GND Power Electrical ground 2 NC No Connect No connect H[1]: specified frequency output Output Enable L: output is high impedance.Only output driver is disabled.H or Open[1]: specified frequency output 3 OE/ S̅ T̅ ̅ /NC Standby L: output is low (weak pull down).Device goes to sleep mode.Supply current reduces to I_std.No Connect Any voltage between 0 and Vdd or Open[1]: Specified frequency output.Pin 3 has no function.4 VDD Power Power sup

Features

Frequencies between 115.194001 MHz to 137 MHz accurate to 6 decimal places.
Operating temperature from -40°C to 125°C. For -55°C option, refer to SiT2020 and SiT2021.
Supply voltage of 1.8 V or 2.5 V to 3.3 V.
Excellent total frequency stability as low as ±20 ppm.
Low power consumption of 4.9 mA typical at 1.8 V.
LVCMOS/LVTTL compatible output.
5-pin SOT23-5 package: 2.9 mm x 2.8 mm.
RoHS and REACH compliant, Pb-free, Halogen-free and Antimony-free.
