PA2423MB - 2.4 GHz Bluetooth Class 1 Power Amplifier

Description

A monolithic, high-efficiency, silicon-germanium power amplifier IC, the PA2423MB is designed for class 1 Bluetoothtm 2.4 GHz radio applications.

making it capable of overcoming insertion losses of up to 2.7 dB between ampl

Features

  • an analog control input for improving PAE at reduced output power levels; a digital control input for controlling power up and power down modes of operation. An on-chip ramping circuit provides the turnon/off switching of amplifier output with less than 3dB overshoot, meeting the Bluetoothtm specification 1.1. The PA2423MB operates at 3.3V DC. At typical output power level (+22.7 dBm), its current consumption is 125 mA. Shipping Method Tape and reel Tubes -samples The silicon/silicon-germanium.

📥 Download Datasheet

Datasheet Details

Part number PA2423MB
Manufacturer SiGe Semiconductor Inc.
File Size 370.78 KB
Description 2.4 GHz Bluetooth Class 1 Power Amplifier
Datasheet download datasheet PA2423MB Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PA2423U 2.4 GHz Bluetoothtm Power Amplifier SiGe Semiconductor
PA241 High Voltage Power Operational Amplifier Cirrus Logic
PA243 High Voltage Power Operational Amplifier APEX
PA2460 Power Amplifier PTC
PA2460LF Power Amplifier PTC

Other Datasheets by SiGe Semiconductor Inc.

Part Number Description
PA2423 2.4 GHz Bluetooth Class 1 Power Amplifier
PA2423 2.4 GHz Bluetooth Class 1 Power Amplifier
PA2423 2.4 GHz Bluetooth Class 1 Power Amplifier
PA2423G 2.4 GHz Bluetooth Class 1 Power Amplifier
PA2423L 2.4 GHz Bluetooth Class 1 Power Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

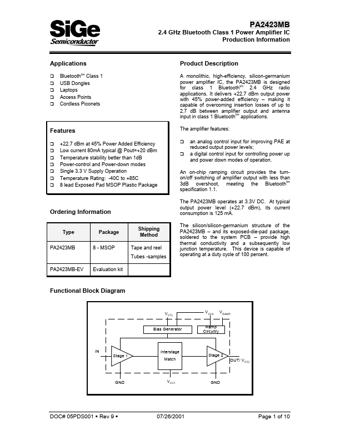

PA2423MB 2.4 GHz Bluetooth Class 1 Power Amplifier IC Production Information Applications Bluetoothtm Class 1 USB Dongles Laptops Access Points Cordless Piconets Product Description A monolithic, high-efficiency, silicon-germanium power amplifier IC, the PA2423MB is designed for class 1 Bluetoothtm 2.4 GHz radio applications. It delivers +22.7 dBm output power with 45% power-added efficiency – making it capable of overcoming insertion losses of up to 2.7 dB between amplifier output and antenna tm input in class 1 Bluetooth applications. The amplifier features: an analog control input for improving PAE at reduced output power levels; a digital control input for controlling power up and power down modes of operation.
