GS1670 - HD/SD SDI Receiver Complete

Semtech

The GS1670 by Semtech is a HD/SD SDI Receiver Complete. Below is the official datasheet preview.

📥 Download Datasheet

GS1670 HD/SD SDI Receiver Complete by Semtech - Datasheet Preview — Official preview page of the GS1670 HD/SD SDI Receiver Complete datasheet (Semtech).

Datasheet Details

Part number	GS1670
Manufacturer	Semtech
File Size	1.48 MB
Description	HD/SD SDI Receiver Complete
Datasheet	GS1670-Semtech.pdf

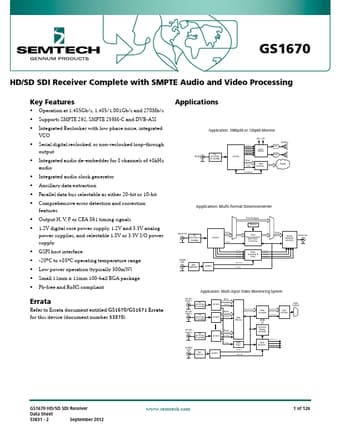

Additional preview pages of the GS1670 datasheet.

GS1670 Product details

Description

The GS1670 is a multi-rate SDI Receiver which includes complete SMPTE processing, as per SMPTE 292 and SMPTE 259M-C.

Features

Operation at 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s.
Supports SMPTE 292, SMPTE 259M-C and DVB-ASI.
Integrated Reclocker with low phase noise, integrated VCO.
Serial digital reclocked, or non-reclocked loop-through output.
Integrated audio de-embedder for 8 channels of 48kHz audio.
Integrated audio clock generator.
Ancillary data extraction.
Parallel data bus selectable as either 20-bit or 10-bit.
Comprehensive erro.
