GS1660A - HD/SD SDI Receiver

Semtech

The GS1660A by Semtech is a HD/SD SDI Receiver. Below is the official datasheet preview.

📥 Download Datasheet

GS1660A HD/SD SDI Receiver by Semtech - Datasheet Preview — Official preview page of the GS1660A HD/SD SDI Receiver datasheet (Semtech).

Datasheet Details

Part number	GS1660A
Manufacturer	Semtech
File Size	1.88 MB
Description	HD/SD SDI Receiver
Datasheet	GS1660A-Semtech.pdf

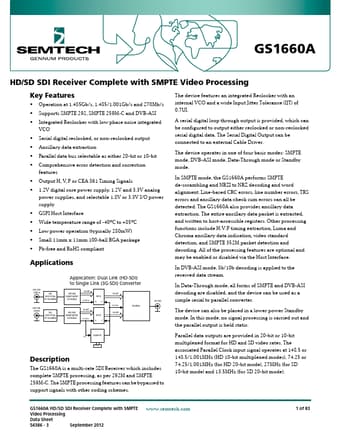

Additional preview pages of the GS1660A datasheet.

GS1660A Product details

Description

The GS1660A is a multi-rate SDI Receiver which includes complete SMPTE processing, as per 292M and SMPTE 259M-C.

Features

Operation at 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s.
Supports SMPTE 292, SMPTE 259M-C and DVB-ASI.
Integrated Reclocker with low phase noise integrated VCO.
Serial digital reclocked, or non-reclocked output.
Ancillary data extraction.
Parallel data bus selectable as either 20-bit or 10-bit.
Comprehensive error detection and correction features.
Output H, V, F or CEA 861 Timing Signals.
1.2V digital core power suppl.
