TPSMCJ85A, TPSMCJ11A - Transient Voltage Suppressors

Name: TPSMCJ85A
SKU: TPSMCJ85A-1588668

SemiWell

The TPSMCJ85A by SemiWell is a Transient Voltage Suppressors. Below is the official datasheet preview.

Datasheet Details

Part number	TPSMCJ85A, TPSMCJ11A
Manufacturer	SemiWell
File Size	286.09 KB
Description	Transient Voltage Suppressors
Datasheet	TPSMCJ11A-SemiWell.pdf
Note	This datasheet PDF includes multiple part numbers: TPSMCJ85A, TPSMCJ11A. Please refer to the document for exact specifications by model.

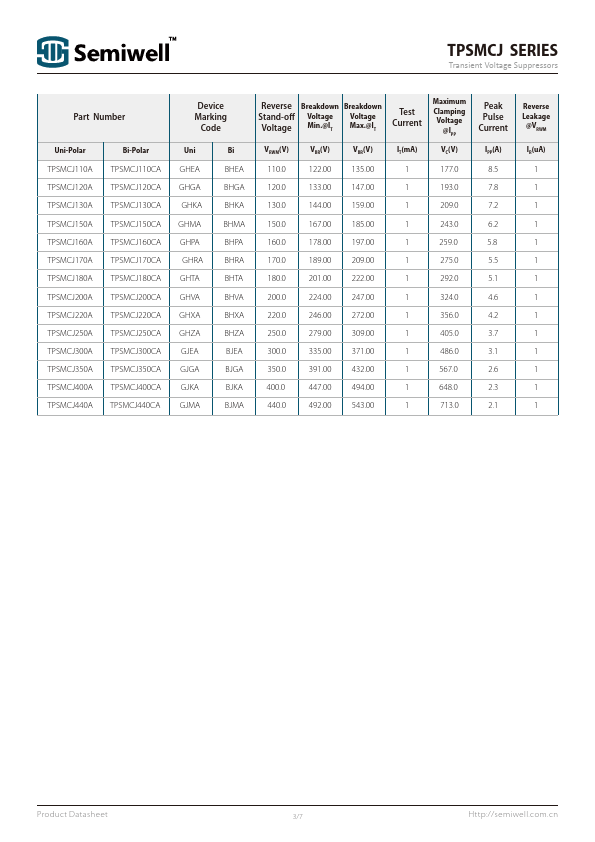

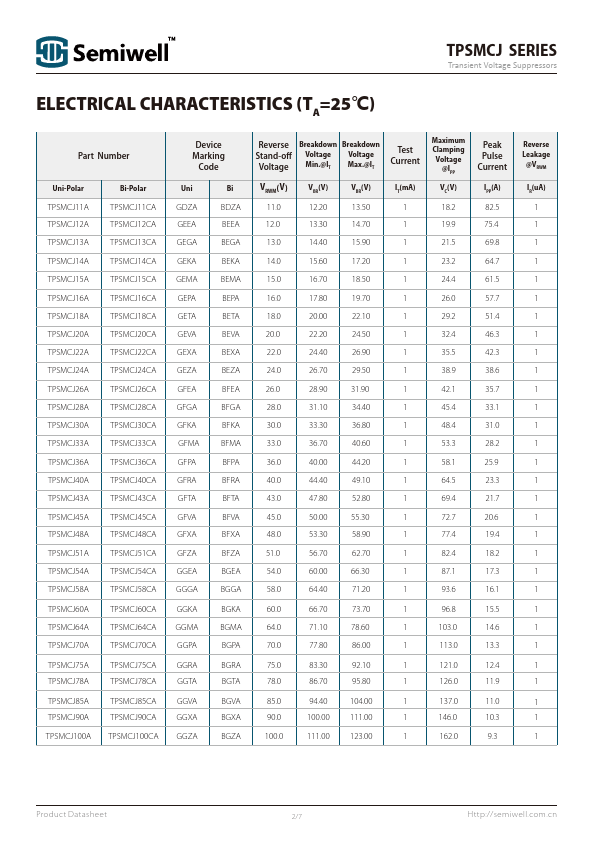

Additional preview pages of the TPSMCJ85A datasheet.

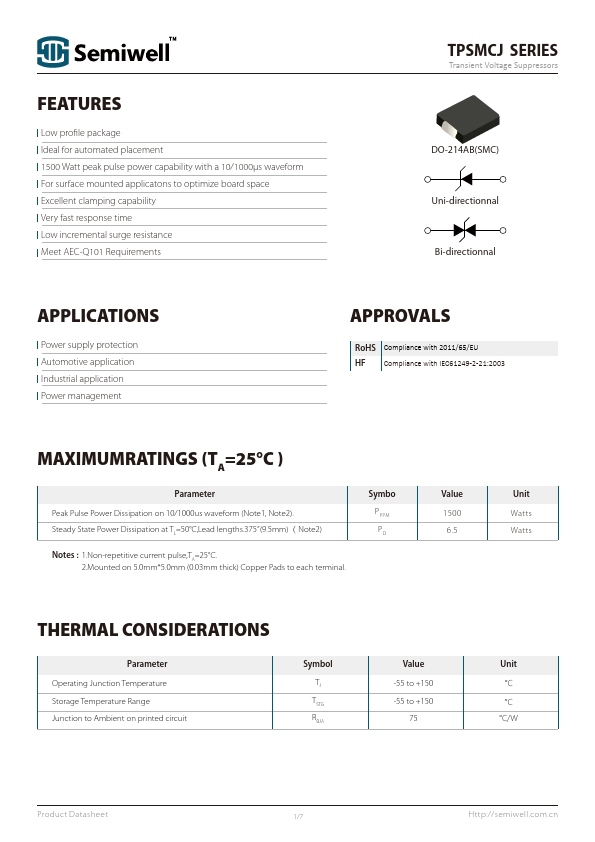

Low proﬁle package Ideal for automated placement 1500 Watt peak pulse power capability with a 10/1000μs waveform For surface mounted applicatons to optimize board space Excellent clamping capability Very fast response time Low incremental surge resistance Meet AEC-Q101 Requirements TPSMCJ SERIES Transient Voltage Suppressors DO-214AB(SMC) Uni-directionnal Bi-directionnal.
