TPSMCJ11A - Transient Voltage Suppressors

Datasheet Summary

Features

  • Low profile package Ideal for automated placement 1500 Watt peak pulse power capability with a 10/1000μs waveform For surface mounted applicatons to optimize board space Excellent clamping capability Very fast response time Low incremental surge resistance Meet AEC-Q101 Requirements TPSMCJ SERIES Transient Voltage Suppressors DO-214AB(SMC) Uni-directionnal Bi-directionnal.

📥 Download Datasheet

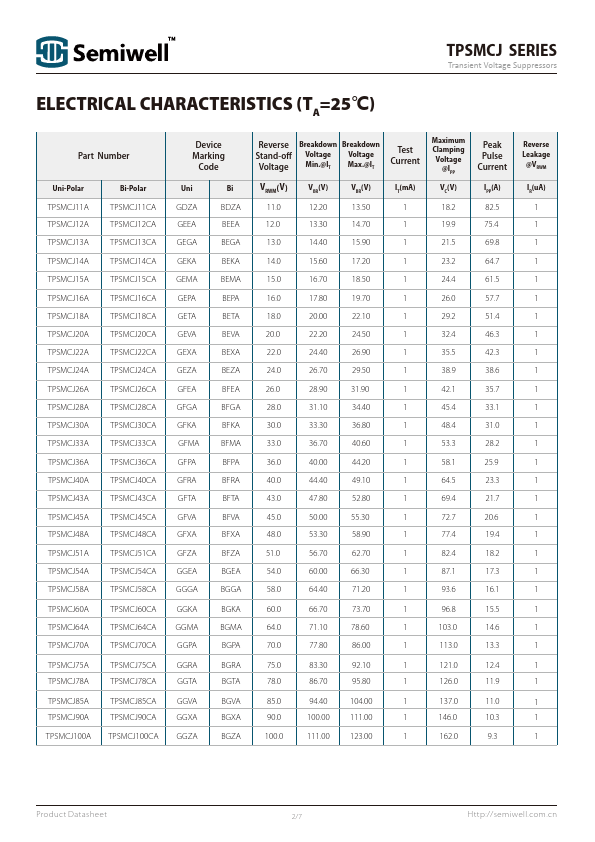

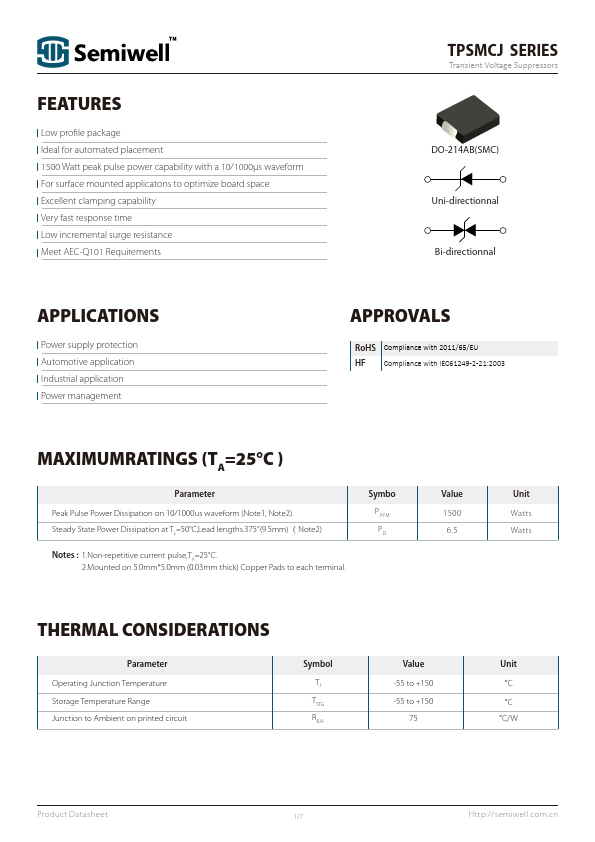

Datasheet preview – TPSMCJ11A

Datasheet Details

Part number TPSMCJ11A
Manufacturer SemiWell
File Size 286.09 KB
Description Transient Voltage Suppressors
Datasheet download datasheet TPSMCJ11A Datasheet

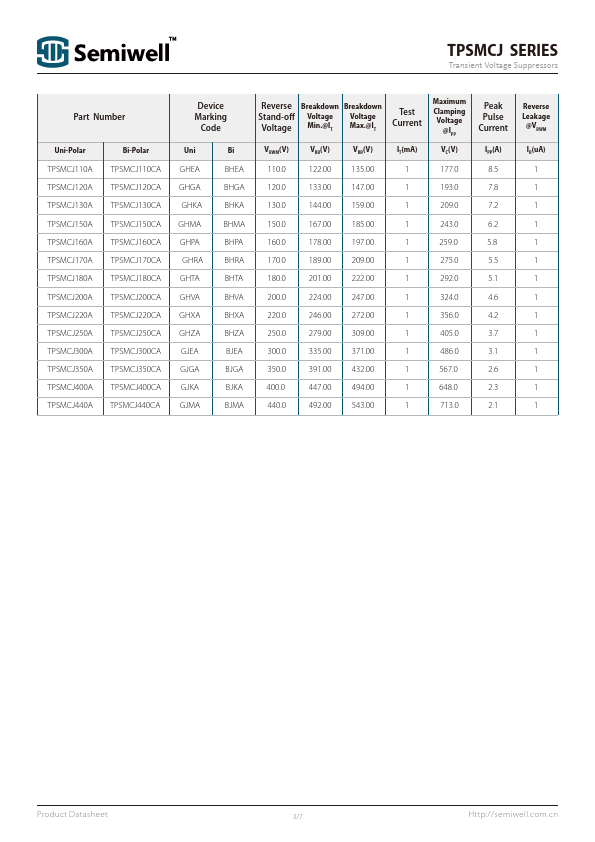

Additional preview pages of the TPSMCJ11A datasheet.
