TPSMCJ100A, TPSMCJ11A Transient Voltage Suppressors

SemiWell

Description

📥 Download Datasheet

TPSMCJ100A Datasheet Preview — This datasheet PDF includes multiple part numbers: TPSMCJ100A, TPSMCJ11A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: TPSMCJ100A, TPSMCJ11A
Manufacturer: SemiWell
File Size: 286.09 KB
Datasheet: TPSMCJ11A-SemiWell.pdf
Description: Transient Voltage Suppressors
Note: This datasheet PDF includes multiple part numbers: TPSMCJ100A, TPSMCJ11A.
Please refer to the document for exact specifications by model.

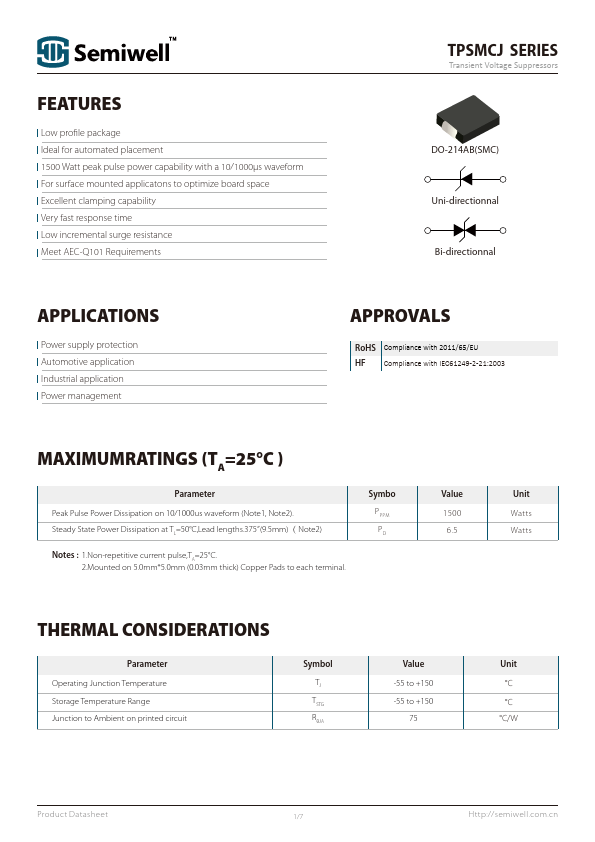

Features

* Low proﬁle package Ideal for automated placement 1500 Watt peak pulse power capability with a 10/1000μs waveform For surface mounted applicatons to optimize board space Excellent clamping capability Very fast response time Low incremental surge resistance Meet AEC-Q101 Requirements TPSMCJ SERIES Tr

Applications

* Power supply protection Automotive application Industrial application Power management APPROVALS RoHS Compliance with 2011/65/EU HF Compliance with IEC61249-2-21:2003 MAXIMUMRATINGS (TA=25°C ) Parameter Peak Pulse Power Dissipation on 10/1000us waveform (Note1, Note2). Steady State Power Dissipati
