KSH13009A - NPN Silicon Power Transistor

KSH13009A Description

KSX13009A Series KSH13009A KSH13009AF / KSH13009AL NPN Silicon Power Transistor, VCBO= 700V, VCEO= 400V, IC= 12A General .
High voltage, high speed power switching. Suitable for switching regulator, inverters motor controls Features. VCBO = 700.

KSH13009A Features

* VCBO = 700V
* VCEO = 400V
* VBEO = 9V
* IC = 12A TO-220 TO-220F TO-3P 3 2 1 3 2 1 3 2 1 Ordering Information Ordering number KSH13009A KSH13009AF KSH13009AL Package TO-220 TO-220F TO-3P Pin Assignment 123 BCE BCE BCE Packing Tube Tube Tube hFE Classificat

📥 Download Datasheet

Preview of KSH13009A PDF

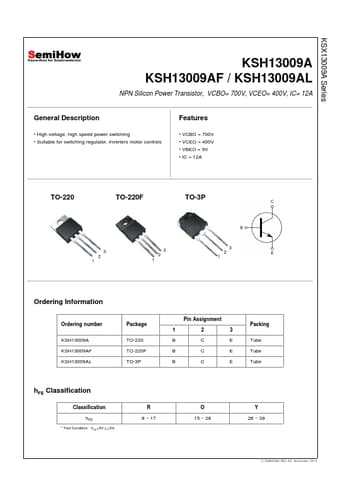

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KSH13009A
Manufacturer
SemiHow
File Size
178.71 KB
Datasheet
KSH13009A-SemiHow.pdf
Description
NPN Silicon Power Transistor
