D2002UK - METAL GATE RF SILICON FET

📥 Download Datasheet

Datasheet preview – D2002UK

Datasheet Details

Part number D2002UK
Manufacturer Seme LAB
File Size 90.43 KB
Description METAL GATE RF SILICON FET
Datasheet download datasheet D2002UK Datasheet
Additional preview pages of the D2002UK datasheet.

📁 Similar Datasheet

  • D2002 - Stereo Headphone Amplifier (Shaoxing Silicore Technology)
  • D200 - SIP DC/DC Converters (uPD)
  • D2005 - NPN Transistor (ROHM)
  • D2009 - NPN Transistor (ROHM)
  • D200LC40B - Super Fast Recovery Rectifiers(400V 200A) (Shindengen Electric Mfg.Co.Ltd)
  • D20 - Memory Micromodules (STMicroelectronics)
  • D2012 - NPN Silicon Power Transistor (STMicroelectronics)
  • D2012 - Si NPN Transistor (Wuxi Youda Electronics)
  • D2012 - 2SD2012 (Toshiba Semiconductor)
  • D2014UK - RF Silicon Mosfet (TT)
Other Datasheets by Seme LAB
  • D2001UK - METAL GATE RF SILICON FET
  • D2003UK - METAL GATE RF SILICON FET
  • D2004UK - METAL GATE RF SILICON FET
  • D2005UK - METAL GATE RF SILICON FET
  • D2006UK - METAL GATE RF SILICON FET
  • D2007UK - METAL GATE RF SILICON FET
  • D2008UK - METAL GATE RF SILICON FET
  • D2009UK - METAL GATE RF SILICON FET

Full PDF Text Transcription

Click to expand full text

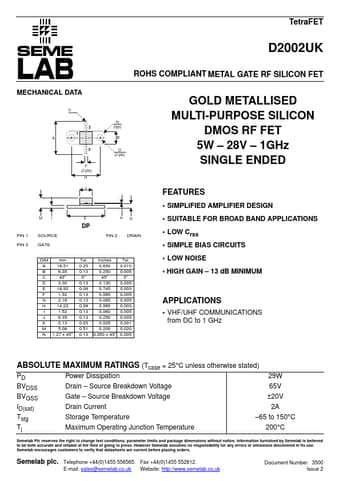

TetraFET D2002UK ROHS COMPLIANT METAL GATE RF SILICON FET MECHANICAL DATA C 2 1 A 3 F (2 pls) H J N (typ) B D (2 pls) MI PIN 1 PIN 3 SOURCE GATE E KG DP PIN 2 DRAIN DIM mm A 16.51 B 6.35 C 45° D 3.30 E 18.92 F 1.52 G 2.16 H 14.22 I 1.52 J 6.35 K 0.13 M 5.08 N 1.27 x 45° Tol. Inches Tol. 0.25 0.650 0.010 0.13 0.250 0.005 5° 45° 5° 0.13 0.130 0.005 0.08 0.745 0.003 0.13 0.060 0.005 0.13 0.085 0.005 0.08 0.560 0.003 0.13 0.060 0.005 0.13 0.250 0.005 0.03 0.005 0.001 0.51 0.200 0.020 0.13 0.050 x 45° 0.
