HBS604H, HBS602H 6.0 Amp Surface Mount Bridge Rectifier

HBS604H Description

Elektronische Bauelemente HBS602H~HBS610H Voltage 200V~1000V 6.0 Amp Surface Mount Bridge Rectifier RoHS Compliant Product .

HBS604H Features

* Surface mount bridge, small package
* Ideal for printed circuit boards
* Glass passivated chip junction
* High forward current capability up to 6A
* High surge current capability
* High heat dissipation capability
* Low profile package
* Low forward voltage drop

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HBS604H, HBS602H. Please refer to the document for exact specifications by model.

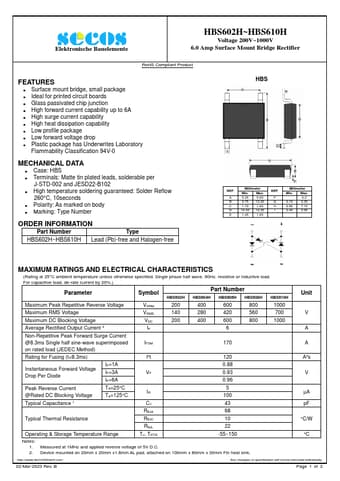

datasheet Preview Page 2

Datasheet Details

Part number
HBS604H, HBS602H
Manufacturer
SeCoS
File Size
386.22 KB
Datasheet
HBS602H-SeCoS.pdf
Description
6.0 Amp Surface Mount Bridge Rectifier
Note
This datasheet PDF includes multiple part numbers: HBS604H, HBS602H.
Please refer to the document for exact specifications by model.
