2SC4242 - Silicon NPN Power Transistors

📥 Download Datasheet

Preview of 2SC4242 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SC4242
Manufacturer Savantic
File Size 184.69 KB
Description Silicon NPN Power Transistors
Datasheet download datasheet 2SC4242_Savantic.pdf

2SC4242 Product details

Description

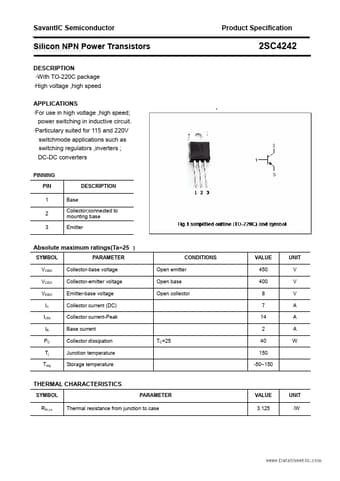

With TO-220C package High voltage ,high speed APPLICATIONS For use in high voltage ,high speed; power switching in inductive circuit. Particulary suited for 115 and 220V switchmode applications such as switching regulators ,inverters ; DC-DC converters PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION 2SC4242 Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Em
