2SC2688 - Silicon NPN Power Transistors

📥 Download Datasheet

Preview of 2SC2688 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SC2688
Manufacturer Savantic
File Size 100.17 KB
Description Silicon NPN Power Transistors
Datasheet download datasheet 2SC2688-Savantic.pdf

2SC2688 Product details

Description

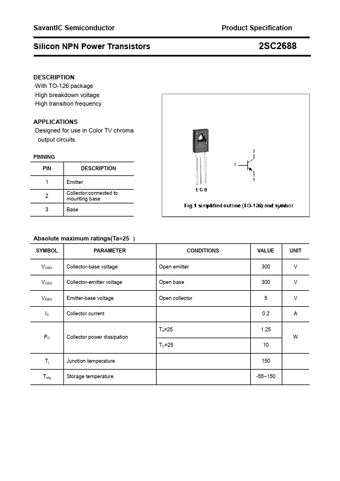

With TO-126 package High breakdown voltage High transition frequency APPLICATIONS Designed for use in Color TV chroma output circuits.PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Absolute maximum ratings(Ta=25 ) SYMBOL PARAMETER VCBO Collector-base voltage VCEO Collector-emitter voltage VEBO Emitter-base voltage IC Collector current PC Collector power dissipation Tj Junction temperature Tstg Storage temperature CONDITIONS Op
