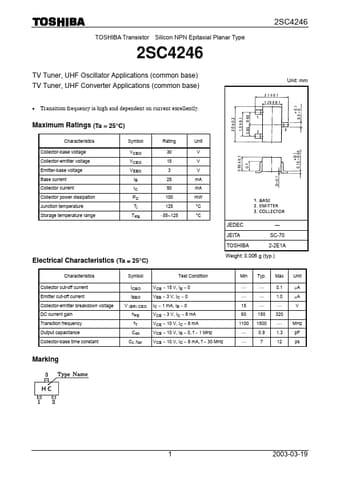

TOSHIBA Transistor Silicon NPN Epitaxial Planar Type
2SC4246
TV Tuner, UHF Oscillator Applications (common base) TV Tuner, UHF Converter Applications (common base)
2SC4246
Unit: mm
· Transition frequency is high and dependent on current excellently.
Maximum Ratings (Ta = 25°C)
Characteristics
Collector-base voltage Collector-emitter voltage Emitter-base voltage Base current Collector current Collector power dissipation Junction temperature Storage temperature range
Symbol
VCBO VCEO VEBO
IB IC PC Tj Tstg
Rating
30 15 3 25 50 100 125 -55~125
Unit
V V V mA mA mW °C °C
Electrical Characteristics (Ta = 25°C)
JEDEC
―
JEITA
SC-70
TOSHIBA
2-2E1A
Weight: 0.006 g (typ.
2SC4246 Datasheet
