2SD2253 - SILICON POWER TRANSISTOR

The 2SD2253 by SavantIC is a SILICON POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the 2SD2253 SILICON POWER TRANSISTOR datasheet (SavantIC).

Datasheet Details

Part number 2SD2253
Manufacturer SavantIC
File Size 274.11 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SD2253_SavantIC.pdf
Additional preview pages of the 2SD2253 datasheet.

2SD2253 Product details

Description

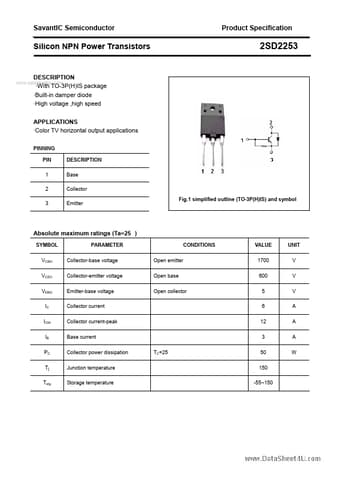

With TO-3P(H)IS package Built-in damper diode High voltage ,high speed APPLICATIONS Color TV horizontal output applications PINNING PIN 1 2 3 DESCRIPTION Base Collector Emitter Fig.1 simplified outline (TO-3P(H)IS) and symbol Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Base current Collector power dissipation Junction tempe
