2SB631K, 2SB631 - SILICON POWER TRANSISTOR

SavantIC

📥 Download Datasheet

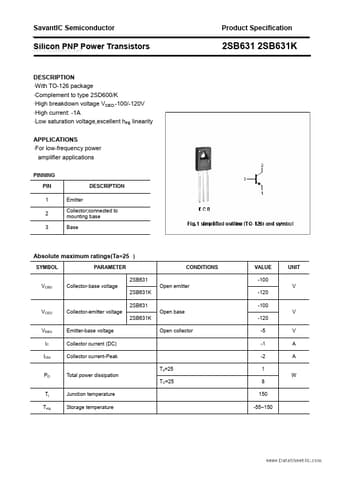

2SB631K Datasheet Preview — This datasheet PDF includes multiple part numbers: 2SB631K, 2SB631. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	2SB631K, 2SB631
Manufacturer	SavantIC
File Size	187.88 KB
Description	SILICON POWER TRANSISTOR
Datasheet	2SB631_SavantIC.pdf
Note	This datasheet PDF includes multiple part numbers: 2SB631K, 2SB631. Please refer to the document for exact specifications by model.

2SB631K Product details

Description

With TO-126 package Complement to type 2SD600/K High breakdown voltage VCEO:-100/-120V High current: -1A Low saturation voltage,excellent hFE linearity APPLICATIONS For low-frequency power amplifier applications PINNING PIN 1 2 3 Emitter Collector;connected to mounting base Base DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL PARAMETER 2SB631 VCBO Collector-base voltage 2SB631K 2SB631 VCEO Collector-emitter voltage 2SB631K VEBO IC ICM Emitter-base voltage Colle
