2SB628 - SILICON POWER TRANSISTOR

SavantIC

📥 Download Datasheet

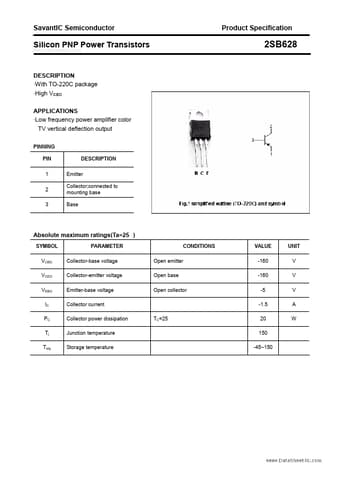

2SB628 Datasheet Preview — Preview of 2SB628 PDF

Datasheet Details

Part number	2SB628
Manufacturer	SavantIC
File Size	116.97 KB
Description	SILICON POWER TRANSISTOR
Datasheet	2SB628_SavantIC.pdf

2SB628 Product details

Description

With TO-220C package High VCEO APPLICATIONS Low frequency power amplifier color TV vertical deflection output PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature TC=25 CONDITIONS Open emitter Open base Open collector VAL
