2SB1087 - SILICON POWER TRANSISTOR

The 2SB1087 by SavantIC is a SILICON POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the 2SB1087 SILICON POWER TRANSISTOR datasheet (SavantIC).

Datasheet Details

Part number 2SB1087
Manufacturer SavantIC
File Size 115.82 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SB1087_SavantIC.pdf

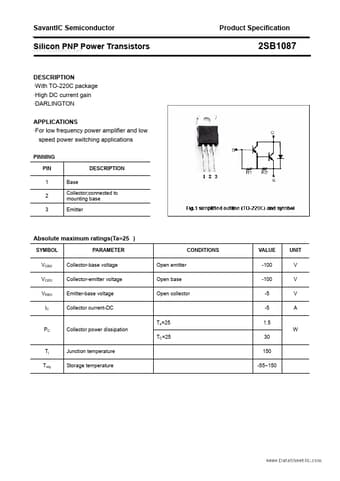

Additional preview pages of the 2SB1087 datasheet.

2SB1087 Product details

Description

With TO-220C package High DC current gain DARLINGTON APPLICATIONS For low frequency power amplifier and low speed power switching applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current-DC Ta=25 PC Collector power dissipation TC=25 Tj Tstg Junction temperature Storage temperature 30 15
