2SB1086A - SILICON POWER TRANSISTOR

The 2SB1086A by SavantIC is a SILICON POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

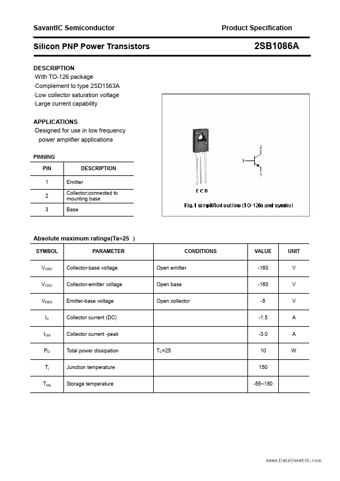

Official preview page of the 2SB1086A SILICON POWER TRANSISTOR datasheet (SavantIC).

Datasheet Details

Part number 2SB1086A
Manufacturer SavantIC
File Size 127.78 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SB1086A_SavantIC.pdf
Additional preview pages of the 2SB1086A datasheet.

2SB1086A Product details

Description

With TO-126 package Complement to type 2SD1563A Low collector saturation voltage Large current capability APPLICATIONS Designed for use in low frequency power amplifier applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base 2SB1086A Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM PD Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current (DC) Collector current -peak To
