2SB1086 - SILICON POWER TRANSISTOR

The 2SB1086 by SavantIC is a SILICON POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the 2SB1086 SILICON POWER TRANSISTOR datasheet (SavantIC).

Datasheet Details

Part number 2SB1086
Manufacturer SavantIC
File Size 127.99 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SB1086_SavantIC.pdf
Additional preview pages of the 2SB1086 datasheet.

2SB1086 Product details

Description

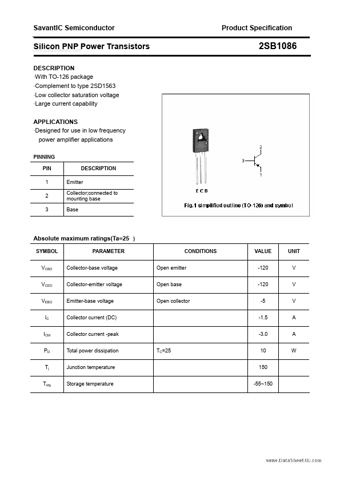

With TO-126 package Complement to type 2SD1563 Low collector saturation voltage Large current capability APPLICATIONS Designed for use in low frequency power amplifier applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base 2SB1086 Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM PD Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current (DC) Collector current -peak Tota
