2SA1386 - SILICON POWER TRANSISTOR

The 2SA1386 by SavantIC is a SILICON POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the 2SA1386 SILICON POWER TRANSISTOR datasheet (SavantIC).

Datasheet Details

Part number 2SA1386
Manufacturer SavantIC
File Size 202.66 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SA1386_SavantIC.pdf
Additional preview pages of the 2SA1386 datasheet.

2SA1386 Product details

Description

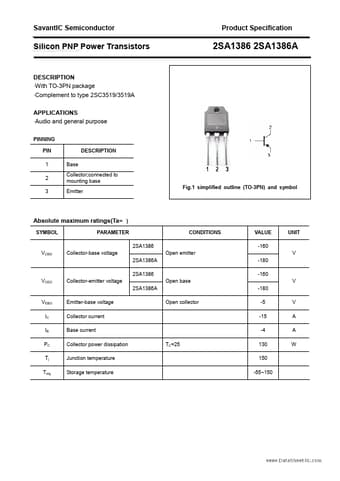

With TO-3PN package Complement to type 2SC3519/3519A APPLICATIONS Audio and general purpose PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL PARAMETER 2SA1386 VCBO Collector-base voltage 2SA1386A 2SA1386 VCEO Collector-emitter voltage 2SA1386A VEBO IC IB PC Tj Tstg Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Sto
