Datasheet Details
| Part number | 2SA1301 |
|---|---|
| Manufacturer | SavantIC |
| File Size | 182.60 KB |
| Description | SILICON POWER TRANSISTOR |
| Datasheet |
 2SA1301_SavantIC.pdf
|
| Part number | 2SA1301 |
|---|---|
| Manufacturer | SavantIC |
| File Size | 182.60 KB |
| Description | SILICON POWER TRANSISTOR |
| Datasheet |
2SA1301_SavantIC.pdf
|

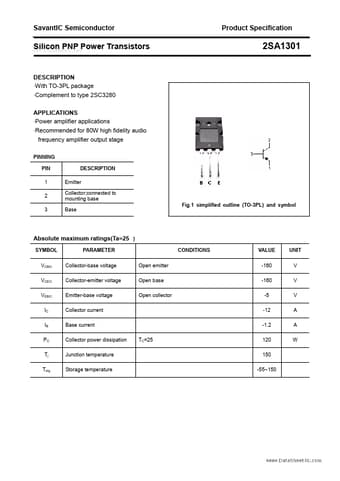

With TO-3PL package Complement to type 2SC3280 APPLICATIONS Power amplifier applications Recommended for 80W high fidelity audio frequency amplifier output stage PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Fig.1 simplified outline (TO-3PL) and symbol Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector
