2SA1185 - SILICON POWER TRANSISTOR

📥 Download Datasheet

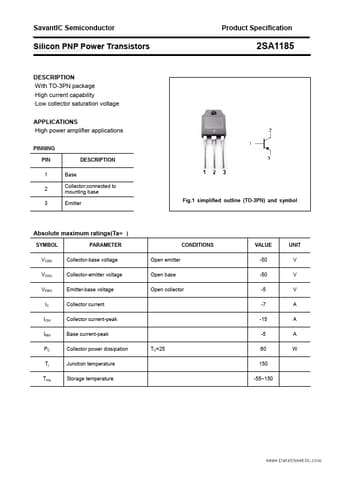

Preview of 2SA1185 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SA1185
Manufacturer SavantIC
File Size 166.13 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SA1185_SavantIC.pdf

2SA1185 Product details

Description

With TO-3PN package High current capability Low collector saturation voltage APPLICATIONS High power amplifier applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC ICM IBM PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Base current-peak Collector power
