2SA1180 - SILICON POWER TRANSISTOR

SavantIC

📥 Download Datasheet

2SA1180 Datasheet Preview — Preview of 2SA1180 PDF

Datasheet Details

Part number	2SA1180
Manufacturer	SavantIC
File Size	134.62 KB
Description	SILICON POWER TRANSISTOR
Datasheet	2SA1180_SavantIC.pdf

2SA1180 Product details

Description

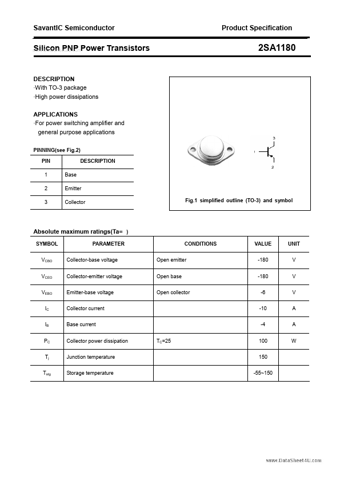

With TO-3 package High power dissipations APPLICATIONS For power switching amplifier and general purpose applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature TC=25 CON
