2SA1182-HF - PNP Transistors

Kexin

📥 Download Datasheet

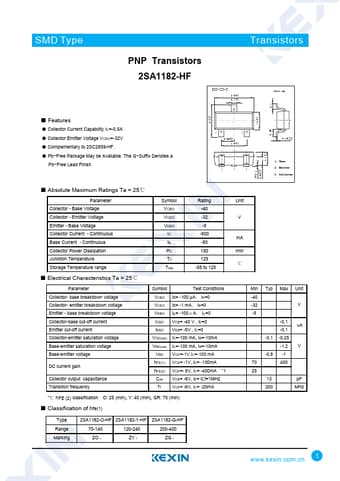

2SA1182-HF Datasheet Preview — Preview of 2SA1182-HF PDF

datasheet Preview Page 2

Datasheet Details

Part number	2SA1182-HF
Manufacturer	Kexin
File Size	923.67 KB
Description	PNP Transistors
Datasheet	2SA1182-HF-Kexin.pdf

2SA1182-HF Product details

Features

s.
Collector Current Capability IC=-0.5A.
Collector Emitter Voltage VCEO=-32V.
Complementary to 2SC2859-HF.
Pb.
Free Package May be Available. The G.
Suffix Denotes a Pb.
Free Lead Finish 12 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.21.1 -0.1 +0.21.6 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Base 2. Emitter 3. Collector 0-0.1 +0.10.68 -0.1.
Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base.
