A1480 2SA1480

A1480 Description

Ordering number:ENN2254 PNP/NPN Epitaxial Planar Silicon Transistors 2SA1480/2SC3790 High-Definiton CRT Display Video Output Applications .

A1480 Features

* High breakdown voltage (VCEO≥300V).
* Small reverse transfer capacitance and excellent high frequency characteristic : Cre=1.8pF (NPN), 2.3pF (PNP).
* Adoption of MBIT process. Package Dimensions unit:mm 2042B [2SA1480/2SC3790] 8.0 4.0 1.0 1.0 3.3 1.5 1.4 3.0 7.5 15.5 11.0 3.0

📥 Download Datasheet

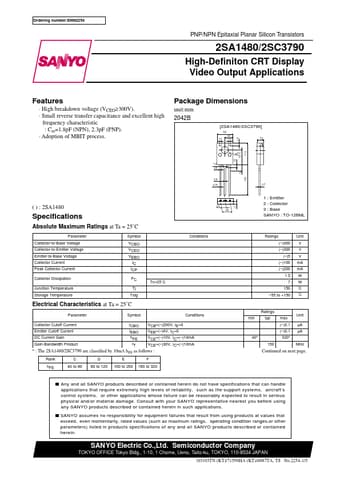

Preview of A1480 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1480
Manufacturer
Sanyo
File Size
41.38 KB
Datasheet
A1480-Sanyo.pdf
Description
2SA1480
