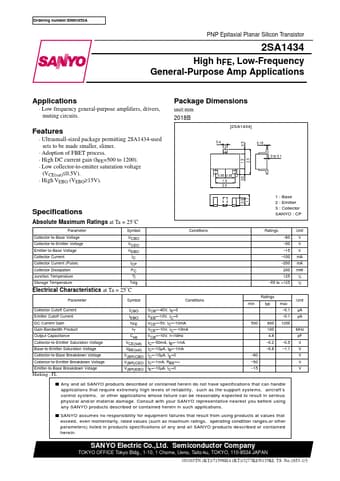

A1434 - 2SA1434

Sanyo

Datasheet Details

Ultrasmall-sized package permitting 2SA1434-used sets to be made smaller, slimer.
Adoption of FBET process.
High DC current gain (hFE=500 to 1200).
Low collector-to-emitter saturation voltage (VCE(sat)≤0.5V).
High VEBO (VEBO≥15V). Package Dimensions unit:mm 2018B [2SA1434] 0.4 3 0.16 0 to 0.1 1.5 0.5 2.5 0.5 1 0.95 0.95 2 1.9 2.9 Specifications Absolute Maximum Ratings at Ta = 25˚C 0.8 1.1 1 : Base 2 : Emitter 3 : Collector SANYO : CP Parameter Symbol Co.
