SB20-03B 30V/ 2A Rectifier

SB20-03B Description

Ordering number:EN3001 SB20-03B Schottky Barrier Diode 30V, 2A Rectifier Applications * High frequency rectification (switching regulators, conv.

SB20-03B Features

* Low forward voltage (VF max=0.55V).
* Fast reverse recovery time (trr max=20ns).
* Low switching noise.
* Low leakage current and high reliability due to highly reliable planar structure. JEDEC:TO-126 C:Cathode A:Anode Specifications Absolute Maximum Ratings at Ta = 25˚C Paramet

📥 Download Datasheet

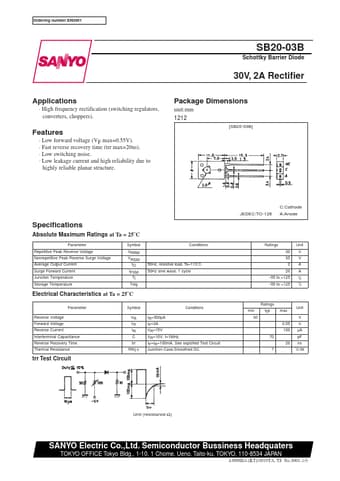

Preview of SB20-03B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB20-03B
Manufacturer
Sanyo Semicon Device
File Size
78.23 KB
Datasheet
SB20-03B_SanyoSemiconDevice.pdf
Description
30V/ 2A Rectifier
