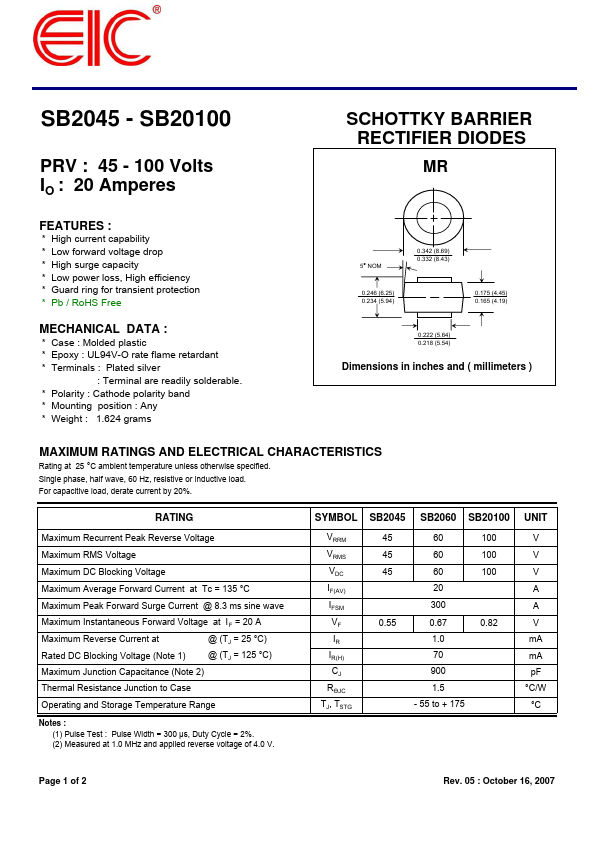

SB20100, SB2045 SCHOTTKY BARRIER RECTIFIER DIODES

SB20100 Description

SB2045 - SB20100 PRV : 45 - 100 Volts IO : 20 Amperes SCHOTTKY BARRIER RECTIFIER DIODES MR .

SB20100 Features

* :
* High current capability
* Low forward voltage drop
* High surge capacity
* Low power loss, High efficiency
* Guard ring for transient protection
* Pb / RoHS Free MECHANICAL DATA :
* Case : Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Terminals : Pla

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB20100, SB2045. Please refer to the document for exact specifications by model.

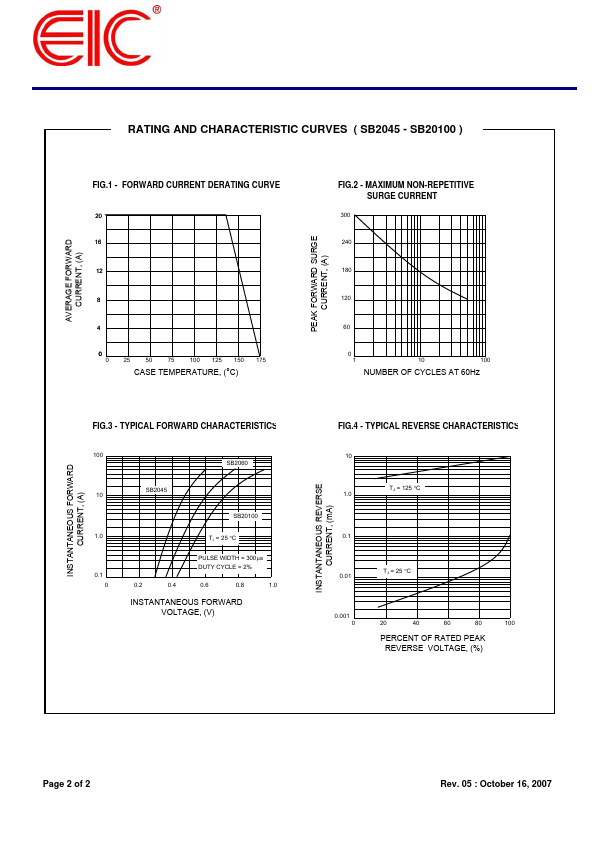

datasheet Preview Page 2

Datasheet Details

Part number
SB20100, SB2045
Manufacturer
EIC
File Size
115.64 KB
Datasheet
SB2045-EIC.pdf
Description
SCHOTTKY BARRIER RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: SB20100, SB2045.
Please refer to the document for exact specifications by model.
