SB2045 - SCHOTTKY BARRIER RECTIFIER DIODES

SB2045 Description

SB2045 - SB20100 PRV : 45 - 100 Volts IO : 20 Amperes SCHOTTKY BARRIER RECTIFIER DIODES MR .

SB2045 Features

* :
* High current capability
* Low forward voltage drop
* High surge capacity
* Low power loss, High efficiency
* Guard ring for transient protection
* Pb / RoHS Free MECHANICAL DATA :
* Case : Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Terminals : Pla

📥 Download Datasheet

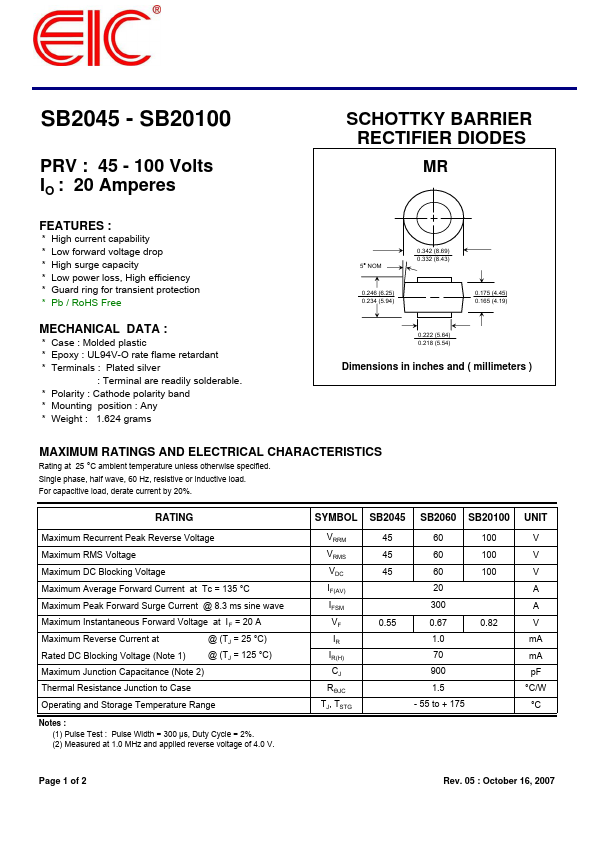

Preview of SB2045 PDF

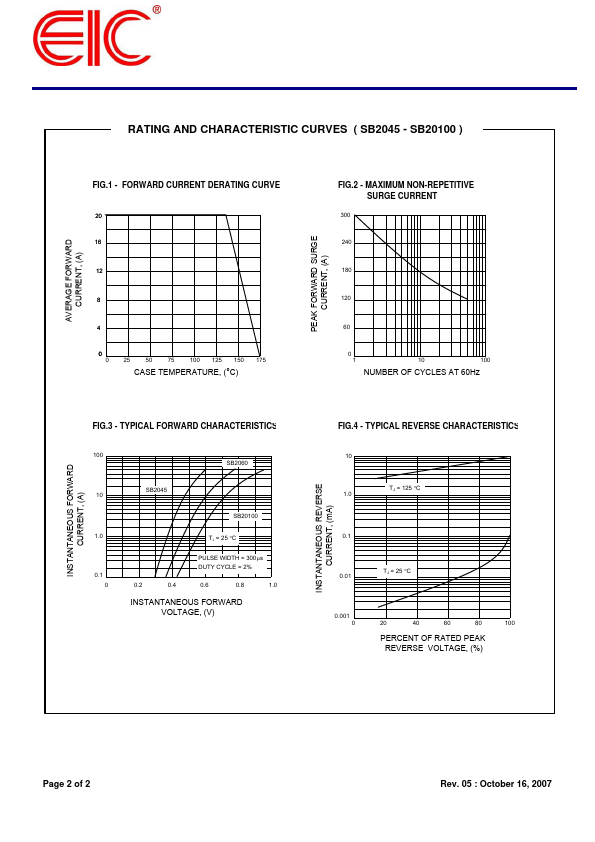

datasheet Preview Page 2

Datasheet Details

Part number
SB2045
Manufacturer
EIC
File Size
115.64 KB
Datasheet
SB2045-EIC.pdf
Description
SCHOTTKY BARRIER RECTIFIER DIODES
