SB20100CT, SB2020CT-WON 20A DUAL SCHOTTKY BARRIER RECTIFIER

SB20100CT Description

® WON-TOP ELECTRONICS SB2020CT * SB20100CT 20A DUAL SCHOTTKY BARRIER RECTIFIER Pb .

SB20100CT Features

* Schottky Barrier Chip
* Guard Ring for Transient Protection
* Low Forward Voltage Drop
* Low Power Loss, High Efficiency
* High Surge Current Capability
* Epoxy Meets UL 94V-0 Classification
* Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB20100CT, SB2020CT-WON. Please refer to the document for exact specifications by model.

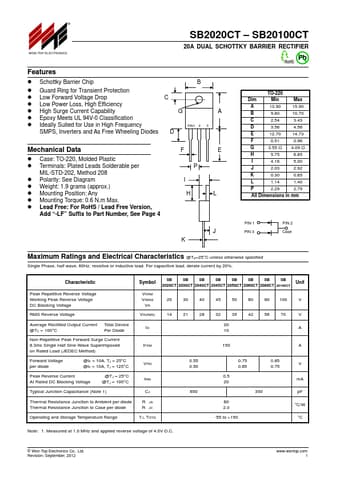

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB20100CT, SB2020CT-WON
Manufacturer
WON-TOP
File Size
42.41 KB
Datasheet
SB2020CT-WON-TOP.pdf
Description
20A DUAL SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SB20100CT, SB2020CT-WON.
Please refer to the document for exact specifications by model.
