SB05-18V - 180V / 500mA Rectifier

Sanyo Semicon Device

📥 Download Datasheet

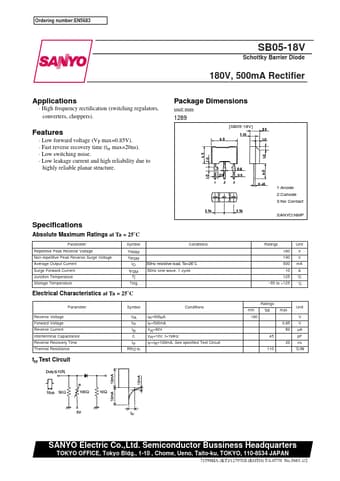

SB05-18V Datasheet Preview — Preview of SB05-18V PDF

datasheet Preview Page 2

Datasheet Details

Part number	SB05-18V
Manufacturer	Sanyo Semicon Device
File Size	60.49 KB
Description	180V / 500mA Rectifier
Datasheet	SB05-18V_SanyoSemiconDevice.pdf

SB05-18V Product details

Features

Low forward voltage (VF max=0.85V).
Fast reverse recovery time (trr max=20ns).
Low switching noise.
Low leakage current and high reliability due to highly reliable planar structure. Package Dimensions unit:mm 1289 [SB05-18V] Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Repetitive Peak Reverse Voltage Non-repetitive Peak Reverse Surge Voltage Average Output Current Surge Forward Current Junction Temperature Storage Temperature Symbol VRRM VRSM IO IFSM.
