SB05-05NP - 50V/ 500mA Rectifier

Features

  • Low forward voltage (VF max=0.55V).
  • Fast reverse recorvery time (trr max=10ns).
  • Low switching noise.
  • Low leakage current and high reliability due to highly reliable planar structure. JEDEC:TO-92 EIAJ:SC-43 SANYO:NP C:Cathode A:Anode Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Repetitive Peak Reverse Voltage Nonrepetitive Peak Reverse Surge Voltage Average Output Current Surge Forward Current Junction Temperature Storage Temperature Symbol VRRM VRSM I.

📥 Download Datasheet

📁 Similar Datasheet

  • SB05-05C - Schottky Barrier Diode (ON Semiconductor)
  • SB05-03C - Schottky Barrier Diode (ON Semiconductor)
  • SB050 - Miniature Schottky Barrier Rectifiers (Vishay)
  • SB050 - Miniature Schottky Barrier Rectifier (Vishay)
  • SB050 - Schottky Barrier Rectifiers (GOOD-ARK)
  • SB05W05 - Schottky Barrier Diode (ON Semiconductor)
  • SB0061 - PIR Motion Detector (ETC)
  • SB007-03C - Schottky Barrier Diode (ON Semiconductor)
  • SB007-03Q - Schottky Barrier Diode (ON Semiconductor)
  • SB01-05C - Schottky Barrier Diode (ON Semiconductor)
Other Datasheets by Sanyo Semicon Device

Full PDF Text Transcription

Click to expand full text

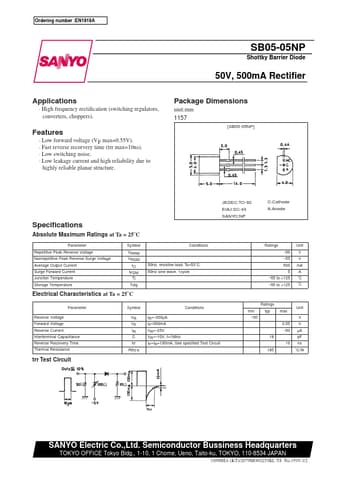

Ordering number :EN1919A SB05-05NP Shottky Barrier Diode 50V, 500mA Rectifier Applications · High frequency rectification (switching regulators, converters, choppers). Package Dimensions unit:mm 1157 [SB05-05NP] Features · Low forward voltage (VF max=0.55V). · Fast reverse recorvery time (trr max=10ns). · Low switching noise. · Low leakage current and high reliability due to highly reliable planar structure.
