SB05-18M - 180V / 500mA Rectifier

Sanyo Semicon Device

📥 Download Datasheet

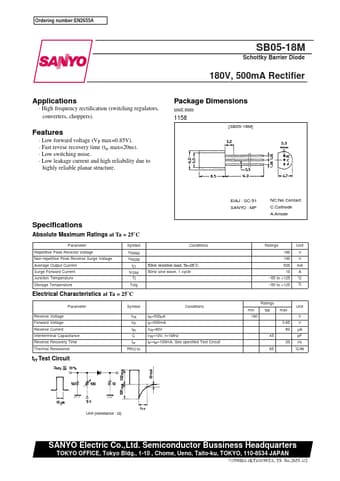

SB05-18M Datasheet Preview — Preview of SB05-18M PDF

datasheet Preview Page 2

Datasheet Details

Part number	SB05-18M
Manufacturer	Sanyo Semicon Device
File Size	58.96 KB
Description	180V / 500mA Rectifier
Datasheet	SB05-18M_SanyoSemiconDevice.pdf

SB05-18M Product details

Features

Low forward voltage (VF max=0.85V).
Fast revese recovery time (trr max=20ns).
Low switching noise.
Low leakage current and high reliability due to highly reliable planar structure. Package Dimensions unit:mm 1158 [SB05-18M] Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Repetitive Peak Reverse Voltage Non-repetitive Peak Reverse Surge Voltage Average Output Current Surge Forward Current Junction Temperature Storage Temperature Symbol VRRM VRSM IO IFSM.
