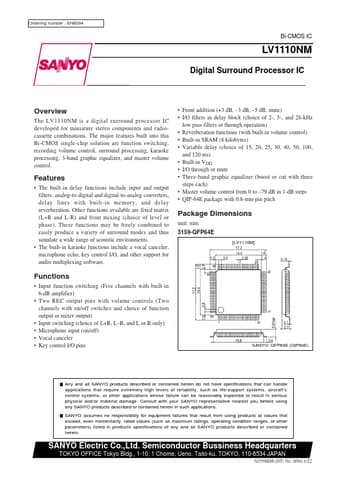

Ordering number : EN6094
Bi-CMOS IC
LV1110NM
Digital Surround Processor IC
Overview
The LV1110NM is a digital surround processor IC developed for miniature stereo components and radiocassette combinations. The major features built into this Bi-CMOS single-chip solution are function switching, recording volume control, surround processing, karaoke processing, 3-band graphic equalizer, and master volume control.
Features
• The built-in delay functions include input and output filters, analog-to-digital and digital-to-analog converters, delay lines with built-in memory, and delay reverberation. Other functions available are fixed matrix (L+R and L-R) and front mixing (choice of level or phase).
