LV1117N - Surround Processor IC

Key Features

  • Input function SW (4ch stereo inputs [L, R]).
  • Line out (through output).
  • Input gain control (.
  • 6dB,.
  • 4dB, 0dB, 4dB, 6dB: 5 positions).
  • AViSS (ON/OFF/6-stage level control).
  • Tone control (BASS: ±20dB, TREBLE: ±18dB [in 2dB steps]).
  • Volume control (0dB to.
  • 14dB: 1dB step/.
  • 14dB to.
  • 80dB: 2dB steps/.
  • ∞=.
  • 82dB).
  • Balance control.
  • Through mode/Mute mode.
  • Pseudo.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LV1115 Surround Processor IC Sanyo Electric
LV1115M Surround Processor IC Sanyo Electric
LV1116 LV1116 ETC
LV1116N Surround Processor ICs for Electronic Volume Control Sanyo
LV1116NV Surround Processor ICs for Electronic Volume Control Sanyo

Other Datasheets by SANYO (now Panasonic)

Part Number Description
LV1117NV Surround Processor IC
LV1117 Surround Processor IC
LV1110NM Digital Surround Processor IC
LV1100 Digital Surround Audio Signal-Processing IC
LV1150 Virtual Surround System IC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

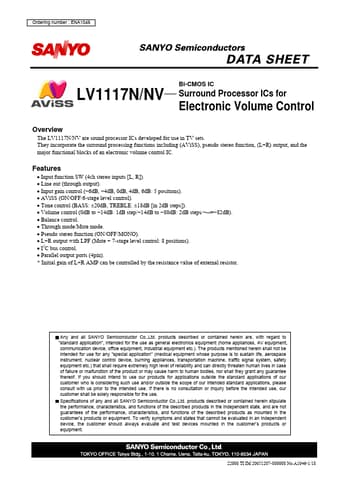

www.DataSheet.co.kr Ordering number : ENA1046 Bi-CMOS IC LV1117N/NV Overview Surround Processor ICs for Electronic Volume Control The LV1117N/NV are sound processor ICs developed for use in TV sets. They incorporate the surround processing functions including (AViSS), pseudo stereo function, (L+R) output, and the major functional blocks of an electronic volume control IC. Features • Input function SW (4ch stereo inputs [L, R]). • Line out (through output). • Input gain control (−6dB, −4dB, 0dB, 4dB, 6dB: 5 positions). • AViSS (ON/OFF/6-stage level control). • Tone control (BASS: ±20dB, TREBLE: ±18dB [in 2dB steps]). • Volume control (0dB to −14dB: 1dB step/−14dB to −80dB: 2dB steps/−∞=−82dB). • Balance control. • Through mode/Mute mode. • Pseudo stereo function (ON/OFF/MONO).
