LV1100 - Digital Surround Audio Signal-Processing IC

Datasheet Summary

Description

1.INPUT PHASE SELECT Selects either the input summation signal (L+R) or the input difference signal (L-R).

When set to low, L+R is selected, and when set to high, L-R is selected.

2.INPUT SELECT Selects either the IN-L and IN-R input signals, or the IN-A input signal.

Features

Input switching (L+R, L.
R, IN.
A) On-chip memory (12K SRAM) Front adder (+3 dB, 0 dB,.
3 dB, -∞) Input and output filters Input filter.
7 kHz low-pass filter Output filter.
5 kHz low-pass filter: switchable with a 3 kHz low-pass filter On-chip VDD circuit Input and output muting function A simulated surround system can be easily implemented with onl.

Datasheet Details

Part number	LV1100
Manufacturer	Sanyo Semicon Device
File Size	142.58 KB
Description	Digital Surround Audio Signal-Processing IC
Datasheet	LV1100 Datasheet
Additional preview pages of the LV1100 datasheet.

📁 Similar Datasheet

LV1115 - Surround Processor IC (Sanyo Electric)

LV1115M - Surround Processor IC (Sanyo Electric)

LV1116 - LV1116 (ETC)

LV1116N - Surround Processor ICs for Electronic Volume Control (Sanyo)

LV1116NV - Surround Processor ICs for Electronic Volume Control (Sanyo)

LV100 - Voltage Transducer LV 100 (LEM)

LV100-100 - Voltage Transducer LV 100-100 (LEM)

LV100-1000 - Voltage Transducer LV 100-1000 (LEM)

LV100-1200 - Voltage Transducer LV 100-1200 (LEM)

LV100-150 - Voltage Transducer LV 100-150 (LEM)

Full PDF Text Transcription

Click to expand full text

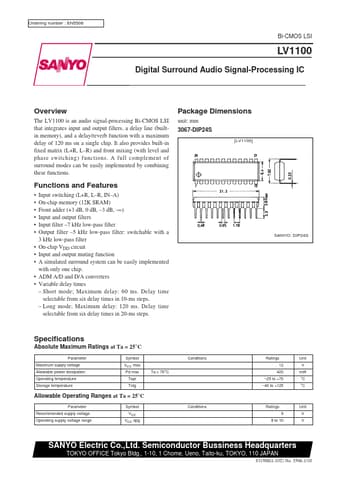

Ordering number : EN5506 Bi-CMOS LSI LV1100 Digital Surround Audio Signal-Processing IC Overview The LV1100 is an audio signal-processing Bi-CMOS LSI that integrates input and output filters, a delay line (builtin memory), and a delay/reverb function with a maximum delay of 120 ms on a single chip. It also provides built-in fixed matrix (L+R, L–R) and front mixing (with level and phase switching) functions. A full complement of surround modes can be easily implemented by combining these functions.
