C3071 - 2SC3071

C3071 Description

Ordering number:EN946G NPN Epitaxial Planar Silicon Transistor 2SC3071 High hFE, Low-Frequency General-Purpose Amplifier Applications Applications <.

C3071 Features

* High DC current gain (hFE=500 to 2000).
* High breakdown voltage (VCEO≥100V).
* Low collector-to-emitter saturation voltage (VCE(sat)≤0.5V).
* High VEBO (VEBO≥15V). Package Dimensions unit:mm 2006B [2SC3071] EIAJ : SC-51 Specifications Absolute Maximum Ratings at Ta = 25˚C Par

C3071 Applications

* Applications

📥 Download Datasheet

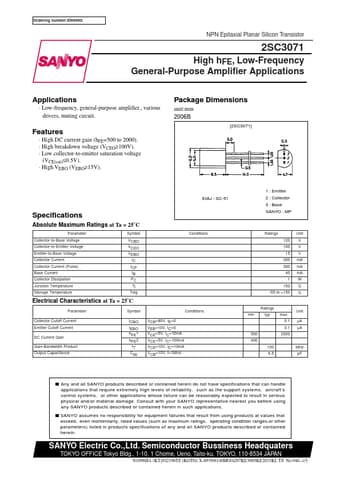

Preview of C3071 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C3071
Manufacturer
Sanyo Semicon Device
File Size
82.69 KB
Datasheet
C3071-SanyoSemiconDevice.pdf
Description
2SC3071
