2SJ272 - P-Channel MOSFET

Sanyo Semicon Device

📥 Download Datasheet

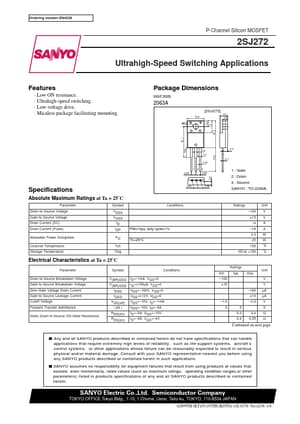

2SJ272 Datasheet Preview — Preview of 2SJ272 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SJ272
Manufacturer	Sanyo Semicon Device
File Size	90.09 KB
Description	P-Channel MOSFET
Datasheet	2SJ272_SanyoSemiconDevice.pdf

2SJ272 Product details

Features

Low ON resistance.
Ultrahigh-speed switching.
Low-voltage drive.
Micaless package facilitating mounting. Package Dimensions unit:mm 2063A [2SJ272] 4.5 10.0 2.8 3.2 3.5 7.2 16.0 18.1 5.6 1.6 1.2 0.75 123 2.55 2.55 Specifications 2.55 Absolute Maximum Ratings at Ta = 25˚C Parameter Drain-to-Source Voltage Gate-to-Source Voltage Drain Current (DC) Drain Current (Pulse) Symbol VDSS VGSS ID IDP Conditions PW≤10µs, duty cycle≤1% Allowable Power Dissipation Channel Te.
