2SC5808 - NPN Triple Diffused Planar Silicon Transistor

Sanyo Semicon Device

Datasheet Details

Part number	2SC5808
Manufacturer	Sanyo Semicon Device
File Size	66.08 KB
Description	NPN Triple Diffused Planar Silicon Transistor
Datasheet	2SC5808_SanyoSemiconDevice.pdf

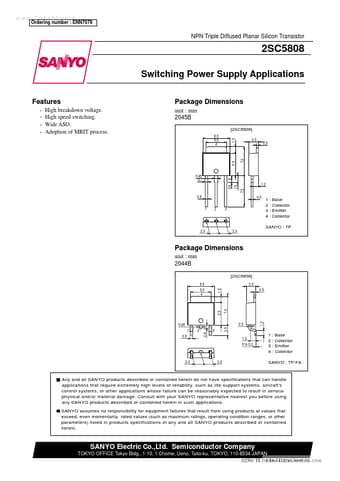

Package Dimensions unit : mm 2045B [2SC5808] 6.5 5.0 4 High breakdown voltage. High speed switching. Wide ASO. Adoption of MBIT process. 1.5 2.3 0.5 0.85 0.7 5.5 7.0 0.8 1.6 1.2 0.6 7.5 0.5 1 2 3 1 : Base 2 : Collector 3 : Emitter 4 : Collector SANYO : TP 2.3 2.3 Package Dimensions unit : mm 2044B [2SC5808] 6.5 5.0 4 2.3 1.5 0.5 5.5 7.0 0.85 0.5 0.8 1 0.6 2 3 2.5 1.2 1.2 0 to 0.2 1 : Base 2 : Collector 3 : Emitter 4 : Collec.
