2SC5803 - Silicon NPN Power Transistor

Inchange Semiconductor Company

📥 Download Datasheet

2SC5803 Datasheet Preview — Preview of 2SC5803 PDF

Datasheet Details

Part number	2SC5803
Manufacturer	Inchange Semiconductor Company
File Size	178.47 KB
Description	Silicon NPN Power Transistor
Datasheet	2SC5803_InchangeSemiconductorCompany.pdf

2SC5803 Product details

Description

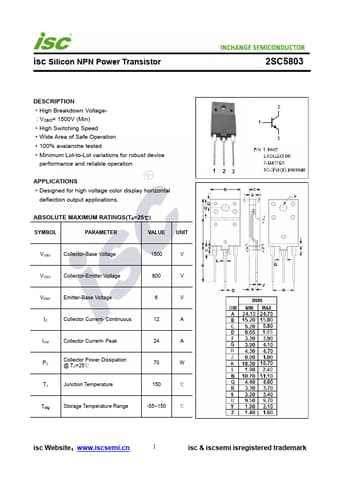

High Breakdown Voltage- : VCBO= 1500V (Min) High Switching Speed Wide Area of Safe Operation 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for high voltage color display horizontal deflection output applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage
