2SC5046 - NPN TRANSISTOR

Sanyo Semicon Device

📥 Download Datasheet

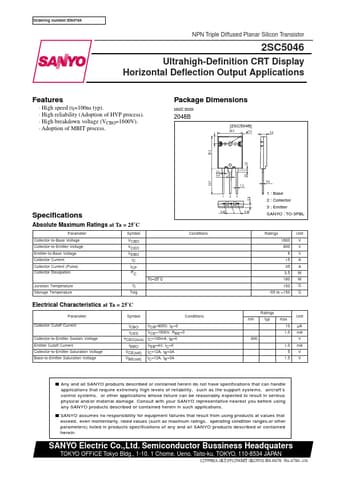

2SC5046 Datasheet Preview — Preview of 2SC5046 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SC5046
Manufacturer	Sanyo Semicon Device
File Size	110.99 KB
Description	NPN TRANSISTOR
Datasheet	2SC5046_SanyoSemiconDevice.pdf

2SC5046 Product details

Features

High speed (tf=100ns typ).
High reliability (Adoption of HVP process).
High breakdown voltage (VCBO=1600V).
Adoption of MBIT process. Package Dimensions unit:mm 2048B [2SC5046] 20.0 3.3 5.0 2.0 1.0 20.7 26.0 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Symbol VCBO VCEO VEBO IC ICP PC Junction Temperatur.
