2SC5041 - NPN TRANSISTOR

Sanyo Semicon Device

📥 Download Datasheet

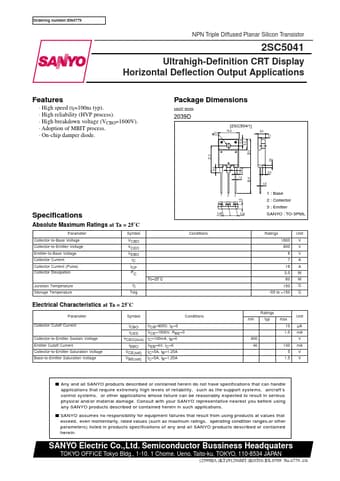

2SC5041 Datasheet Preview — Preview of 2SC5041 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SC5041
Manufacturer	Sanyo Semicon Device
File Size	100.10 KB
Description	NPN TRANSISTOR
Datasheet	2SC5041_SanyoSemiconDevice.pdf

2SC5041 Product details

Features

High speed (tf=100ns typ).
High reliability (HVP process).
High breakdown voltage (VCBO=1600V).
Adoption of MBIT process.
On-chip damper diode. Package Dimensions unit:mm 2039D [2SC5041] 16.0 3.4 5.6 3.1 5.0 8.0 22.0 2.0 21.0 4.0 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Symbol VCBO VCEO VEBO I.
