2SC5043 - NPN TRANSISTOR

Sanyo Semicon Device

📥 Download Datasheet

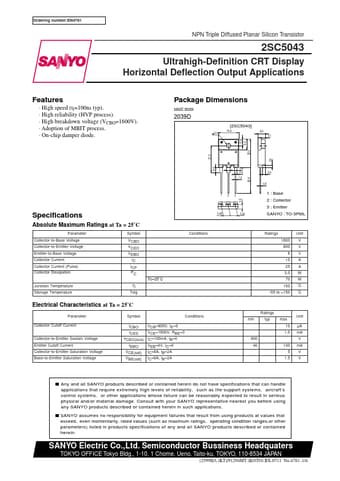

2SC5043 Datasheet Preview — Preview of 2SC5043 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SC5043
Manufacturer	Sanyo Semicon Device
File Size	104.53 KB
Description	NPN TRANSISTOR
Datasheet	2SC5043_SanyoSemiconDevice.pdf

2SC5043 Product details

Features

High speed (tf=100ns typ).
High reliability (HVP process).
High breakdown voltage (VCBO=1600V).
Adoption of MBIT process.
On-chip damper diode. Package Dimensions unit:mm 2039D [2SC5043] 3.4 16.0 5.0 8.0 5.6 3.1 21.0 22.0 4.0 2.8 2.0 20.4 1.0 2.0 0.6 1 2 3 3.5 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Di.
