2SC4519 - NPN TRANSISTOR

Sanyo Semicon Device

📥 Download Datasheet

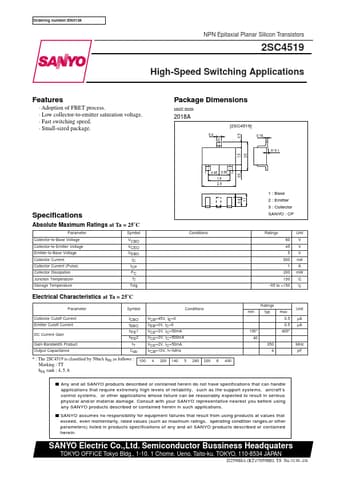

2SC4519 Datasheet Preview — Preview of 2SC4519 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SC4519
Manufacturer	Sanyo Semicon Device
File Size	83.76 KB
Description	NPN TRANSISTOR
Datasheet	2SC4519_SanyoSemiconDevice.pdf

2SC4519 Product details

Features

Adoption of FBET process.
Low collector-to-emitter saturation voltage.
Fast switching speed.
Small-sized package. Package Dimensions unit:mm 2018A [2SC4519] 0.4 3 0.16 0~0.1 0.5 1.5 0.5 2.5 1 0.95 0.95 2 1.9 2.9 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature Storage Temperature Sym.
