2SC4523 - NPN TRANSISTOR

Sanyo Semicon Device

📥 Download Datasheet

2SC4523 Datasheet Preview — Preview of 2SC4523 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SC4523
Manufacturer	Sanyo Semicon Device
File Size	88.17 KB
Description	NPN TRANSISTOR
Datasheet	2SC4523_SanyoSemiconDevice.pdf

2SC4523 Product details

Features

Adoption of FBET, MBIT process.
Large current capacity.
Low collector-to-emitter saturation voltage.

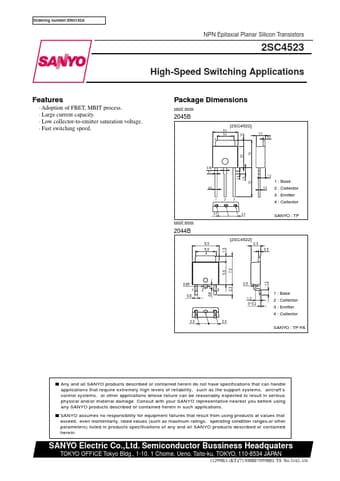

Fast switching speed. Package Dimensions unit:mm 2045B [2SC4522] 6.5 5.0 4 2.3 0.5 5.5 1.5 7.0 unit:mm 2044B 0.85 0.7 0.6 123 2.3 2.3 0.8 1.6 7.5 1.2 1 : Base 0.5 2 : Collector 3 : Emitter 4 : Collector SANYO : TP [2SC4522] 6.5 2.3 5.0 0.5 4 0.8 5.5 1.5 2.5 7.0 1.2 0.85 1 0.6 2 3 2.3 2.3 0.5 1.2 0~0.2 1 : Base 2 : Collector 3 : Emitter 4 : Collector SANYO :.
