2SC4510 - SILICON POWER TRANSISTOR

📥 Download Datasheet

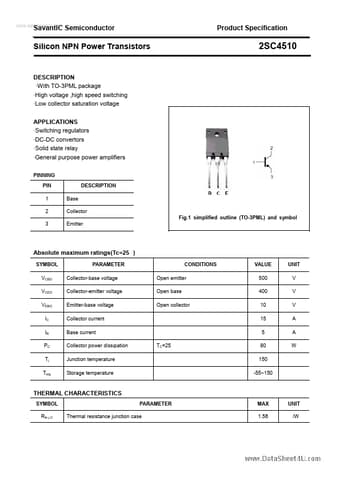

Preview of 2SC4510 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SC4510
Manufacturer SavantIC
File Size 259.75 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC4510_SavantIC.pdf

2SC4510 Product details

Description

With TO-3PML package High voltage ,high speed switching Low collector saturation voltage APPLICATIONS Switching regulators DC-DC convertors Solid state relay General purpose power amplifiers PINNING PIN 1 2 3 Base Collector Fig.1 simplified outline (TO-3PML) and symbol Emitter DESCRIPTION Absolute maximum ratings(Tc=25 ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base
