STR6S161HXD Off-line PWM Controllers

STR6S161HXD Description

Off-line PWM Controllers with Integrated Power MOSFET STR6S161HXD Data Sheet .
The STR6S161HXD is power IC for switching power supplies, incorporating a power MOSFET and a current mode PWM controller IC.

STR6S161HXD Features

* Pb-free (RoHS compliant)
* Improving circuit efficiency (Since the step drive control can keep VRM of secondary rectification diodes low, the circuit efficiency can be improved by low VF)
* Current Mode Type PWM Control
* AC Input Voltage Detection Function - Overvoltage Protection

STR6S161HXD Applications

* White Goods
* Office Automation Equipment
* Audio Visual Equipment
* Industrial Equipment
* Other Switched Mode Power Supplies (+) 15-16 13-14 9 D/ST D/ST VCC STR6S161HXD (
* ) D/ST FB/ S/OCP BR GND OLP 1-2 56 7 8 STR6S161HXD-DSJ Rev.1.11 SANKEN ELECTRIC CO.

📥 Download Datasheet

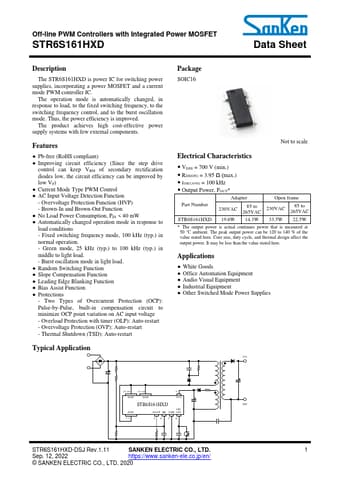

Preview of STR6S161HXD PDF
