STR6A153MV Off-Line PWM Controller

STR6A153MV Description

Off-Line PWM Controllers with Integrated Power MOSFET STR6A100xV/xVD Series Data Sheet .
The STR6A100xV/xVD series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC.

STR6A153MV Features

* Improving Circuit Efficiency (Since the step drive control can keep VRM of secondary rectification diodes low, the circuit efficiency can be improved by low VF)
* Current Mode Type PWM Control
* Soft Start Function
* Adjustable Standby Operating Point No Load Power Consumption < 15

📥 Download Datasheet

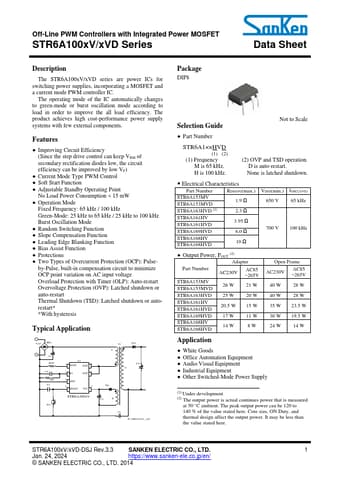

Preview of STR6A153MV PDF
datasheet Preview Page 2 datasheet Preview Page 3
