STR6A124MV Off-line PWM Controllers

STR6A124MV Description

Off-line PWM Controllers with Integrated Power MOSFET STR6A124MV Data Sheet .
The STR6A124MV is power IC for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC.

STR6A124MV Features

* Improving Circuit Efficiency (Since the step drive control can keep VRM of secondary rectification diodes low, the circuit efficiency can be improved by low VF)
* Current Mode Type PWM Control
* Soft Start Function
* Adjustable Standby Operating Point No Load Power Consumption < 15

STR6A124MV Applications

* White Goods
* Office Automation Equipment
* Audio Visual Equipment
* Industrial Equipment
* Other Switched-mode Power Supply (1) The output power is actual continues power that is measured at 50 °C ambient. The peak output power can be 120 to 140 % of the value stated here. C

📥 Download Datasheet

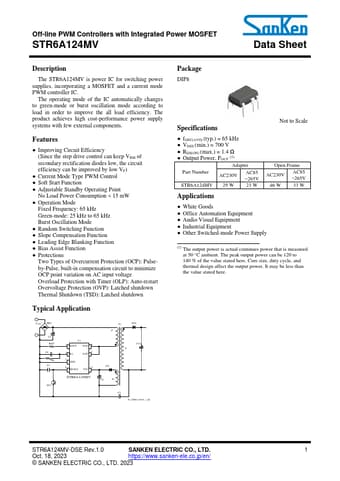

Preview of STR6A124MV PDF
datasheet Preview Page 2 datasheet Preview Page 3
